2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board

Model Number : FS-1440-2900

Panel Thickness : 2.0-3.0mm

Price : $7.5-10.6

Material Composition : High-density PVC + Nano Sintered Stone/Calcium Powder Composite

Certification : CE，SGS

Waterresistance : 100%

MOQ : 100pcs

Delivery Time : 5-8workdays

Color Variance : Δ E < 0.5

Product Width : 1220 mm

Supply Ability : 1000000pcs/week

Tactile Texture : Matte / Satin Sintered Stone Micro-Embossed Finish

Product Thickness : 2.5 mm / 2.8 mm / 3.0 mm

Payment Terms : Western Union,T/T,D/P,D/A,L/C

Surface Craftsmanship : Advanced Hot-Pressed / Thermal Compression Molding

Water absorption rate : ≤ 0.1

Place of Origin : China

Scratch Resistance : 3H - 4H

Packaging Details : pallet/carton

Product Length : 2900 mm

Brand Name : Vanshine

Sheet size : 1220mm x 2900mm

Contact Now

2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board
Product Overview

As a verified direct-source manufacturer, we engineered this 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board to deliver an uncompromised architectural finish for high-end commercial projects. By utilizing premium thermal compression molding, this series replicates the authentic tactile texture of natural sintered stone while maintaining the lightweight, versatile properties of advanced PVC composites.

Product Features
  • Precision Hot-Pressed Sintered Texture
    Unlike standard flat printed sheets, our advanced hot-pressing technology molecularly embeds a micro-textured, matte tactile finish into the surface. This eliminates harsh glare and light pollution, achieving a premium, low-sheen satin aesthetic favored by global architects.
  • Seamless 2.9m Single-Board Layout
    Calibrated at exactly 2.9 meters to align flawlessly with international commercial and luxury residential ceiling heights. This architectural geometry eliminates horizontal splicing joints, dropping on-site labor overhead while ensuring a continuous, unbroken wall facade.

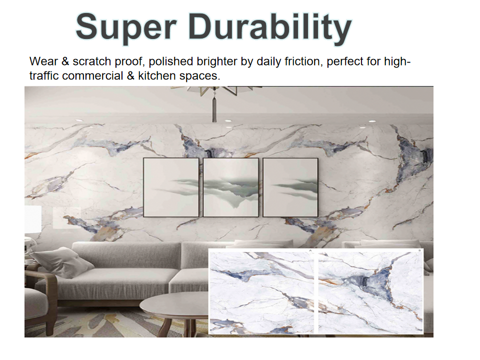

  • Industrial-Grade Scratch Resistance
    Cured with an integrated multi-layer wear shield that achieves a 3H - 4H pencil hardness rating. The textured surface effectively hides and resists micro-abrasions, tool friction, and high-traffic wear during transit and site handling.
  • Rigorous ΔE < 0.5 Color Uniformity
    Backed by real-time automated spectrophotometer tracking across our entire extrusion line. We guarantee a strict batch-to-batch color tolerance of ΔE < 0.5, ensuring flawless color consistency across massive continuous wall installations.
  • Certified Project Compliance
    Manufactured to meet strict international building safety codes, featuring an inherent Class B1 Fire Retardant rating and Grade E0 low formaldehyde emissions for safe indoor deployment.
2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board
Technical Specifications
Technical Indicator Standard Value Test Method
Material Composition High-density PVC + Nano Sintered Stone/Calcium Powder Composite Factory Heavy-Duty Extrusion Standard
Surface Craftsmanship Advanced Hot-Pressed / Thermal Compression Molding Premium Embossing Line
Tactile Texture Matte / Satin Sintered Stone Micro-Embossed Finish (Low Glare) Architectural Anti-Light Pollution Test
Product Width 1220 mm Calibrated Mold Tolerance ± 1.0 mm
Product Length 2900 mm (2.9m) Calibrated Mold Tolerance ± 2.0 mm
Product Thickness 2.5 mm / 2.8 mm / 3.0 mm Precision Caliper Control ± 0.05 mm
Scratch Resistance ≥ 3H - 4H (Hot-pressed surface enhances wear hiding) Pencil Hardness Test (ASTM D3363)
Color Variance Δ E < 0.5 Spectrophotometer Monitoring
Performance Advantages
2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board

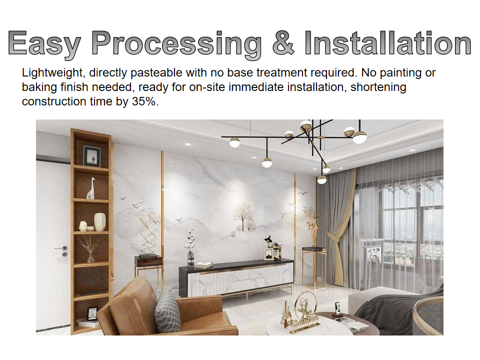

Installation Guide
Phase 1: Pre-Installation Preparation
  • Wall Substrate Inspection
    The substrate wall must be completely flat, dry, structurally sound, and free of dust, grease, or loose plaster. For uneven concrete or masonry walls, pre-installing a plywood or calcium silicate backing board is required to guarantee flawless flatness.
  • Texture Orientation & Acclimatization
    Unpack the sheets and lay them flat in the installation area for at least 24 hours to adapt to local site temperature. Before applying adhesive, check the direction of the hot-pressed embossed textures to ensure all sheets are oriented consistently for an optimal visual layout.
Phase 2: Execution Steps
Step 1: Precision Cutting

Measure the exact ceiling height. Use a fine-tooth circular saw or a professional portable rail cutter to trim the 2.9m sheet to the required dimensions. Always cut from the textured front face to prevent any edge chipping or microscopic cracking on the hot-pressed surface.

Step 2: High-Strength Adhesive Application

Clean the back of the PVC marble sheet to remove any manufacturing dust. Apply a premium, high-strength neutral silicone structural glue or polyurethane adhesive. Create a continuous bead around the perimeter (30 mm inward from the edge) and apply a uniform "snake" or grid pattern across the center core area.

Step 3: Positioning & Vacuum Bonding

Carefully lift the sheet and press it firmly against the wall baseline. Use professional glass vacuum suction cups for better handling. Utilize a rubber mallet with a clean carpet-wrapped wooden block to gently tap the surface from the center outward, ensuring 100% glue transfer and eliminating trapped air pockets.

Step 4: Joint Profiling & Seamless Seaming

For standard engineering, insert color-matched Aluminum H-trim profiles between sheets, and use Aluminum L-caps for external corners. For an ultra-premium, seamless stone-block look, maintain a tight line-fit between the hot-pressed edges and inject color-matched translucent structural sealant into the microscopic seams, wiping away excess immediately.

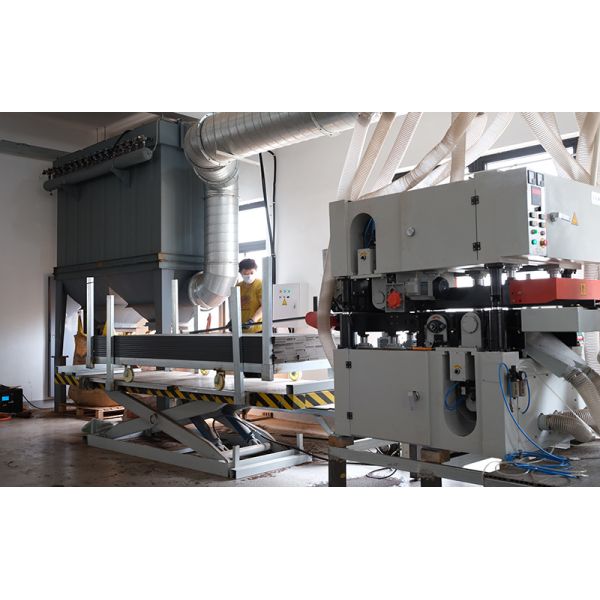

Manufacturing Excellence
2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board 2.9m Hot Pressed PVC Marble Sheets Scratch Resistant Wall Board
Frequently Asked Questions
What is the difference between "Hot Pressed" and standard PVC marble sheets?
Standard PVC marble sheets have a completely flat, high-gloss printed surface which can sometimes reflect harsh glare under commercial lighting. Our Hot Pressed PVC Marble Sheets undergo an advanced thermal compression molding process. Under high-temperature molds, a precise, micro-textured stone grain is molecularly embedded into the surface. This creates an authentic matte/satin finish with a rich tactile texture that perfectly replicates natural sintered stone, eliminating light pollution and visual plastic cheapness.
Does the hot-pressed textured surface affect the scratch resistance or cleaning?
Not at all. In fact, it enhances real-world durability. The sheet is engineered with an integrated multi-layer wear shield that achieves a 3H - 4H pencil hardness rating (ASTM D3363). The hot-pressed micro-texture is highly effective at deflecting ambient light, making micro-scratches and tool friction from transit or site handling virtually invisible to the naked eye. For cleaning, the dense PVC composite material has a water absorption rate of ≤0.1, so everyday dirt, grease, or construction dust can be effortlessly wiped away with a damp cloth without getting trapped in the grain.
Why should I source the 2.9m length instead of the standard 2.44m for my commercial project?
Sourcing our 2.9m architectural profile significantly reduces your landing installation costs. Standard global commercial and luxury residential ceiling heights usually range between 2.7m and 2.85m. If you use standard 2.44m boards, installers are forced to patch an awkward horizontal seam on every single wall, which increases labor time and spoils the continuous stone pattern. Our 2.9m sheets allow for an "unbroken floor-to-ceiling layout," dropping on-site installation time by approximately 20% and completely eliminating mid-wall seams.
How does your factory guarantee color consistency across massive continuous wall installations?
Color shading is a fatal defect for large-scale real estate projects. As a direct-source factory, our fully automated extrusion lines utilize digital spectrophotometer monitoring systems. By strictly locking the mineral composite blending ratios and curing temperatures, we guarantee an industry-leading batch color tolerance of ΔE < 0.5. When hundreds of our sheets are interlocked in a massive hotel lobby or airport corridor, there is zero visible batch variation to the naked eye, ensuring seamless architectural integrity.
